Sprint 2 Powder Coating Systems

What Are Sprint 2 Powder Coating Systems?

Powder coating is one of the most efficient ways to finish metal and other conductive parts, and the equipment used to apply that powder makes a real difference in quality, speed, and consistency. The Sprint 2 family of manual powder coating systems is built around exactly that idea: simple to set up, easy to operate, and capable of delivering professional-grade finishes whether you’re running a small workshop or a full production line.

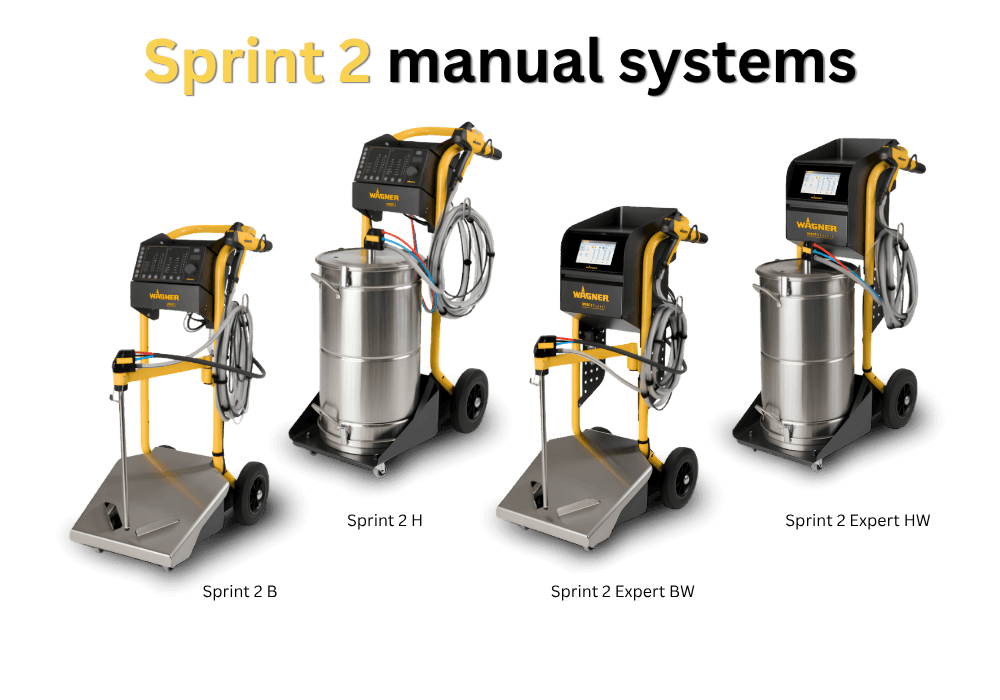

Rather than offering a single fixed setup, the Sprint 2 lineup is modular. Each system pairs a control unit with a manual powder gun and a powder feeding method, so the configuration can be matched precisely to the part being coated, the powder being used, and the volume of work going through the shop.

How Manual Powder Coating Works

At its core, a manual powder coating system charges dry powder particles electrically as they pass through the gun. The part being coated is grounded, so the charged particles are pulled toward its surface instead of drifting away. This is what gives powder coating its signature even coverage, including on edges and recessed areas that liquid paint often misses.

The Sprint 2 systems improve on this basic principle with a closed-loop air control technology that continuously measures and adjusts airflow during spraying. The result is a steadier, more uniform powder cloud — which translates directly into a smoother, more consistent finish across every part, not just the first few.

Key Benefits of the Sprint 2 Range

Sprint 2 vs. Sprint 2 Expert: What’s the Difference?

Both tiers share the same core air-control and finish-optimization technology, but the Expert version adds a smarter, more guided experience for the operator.

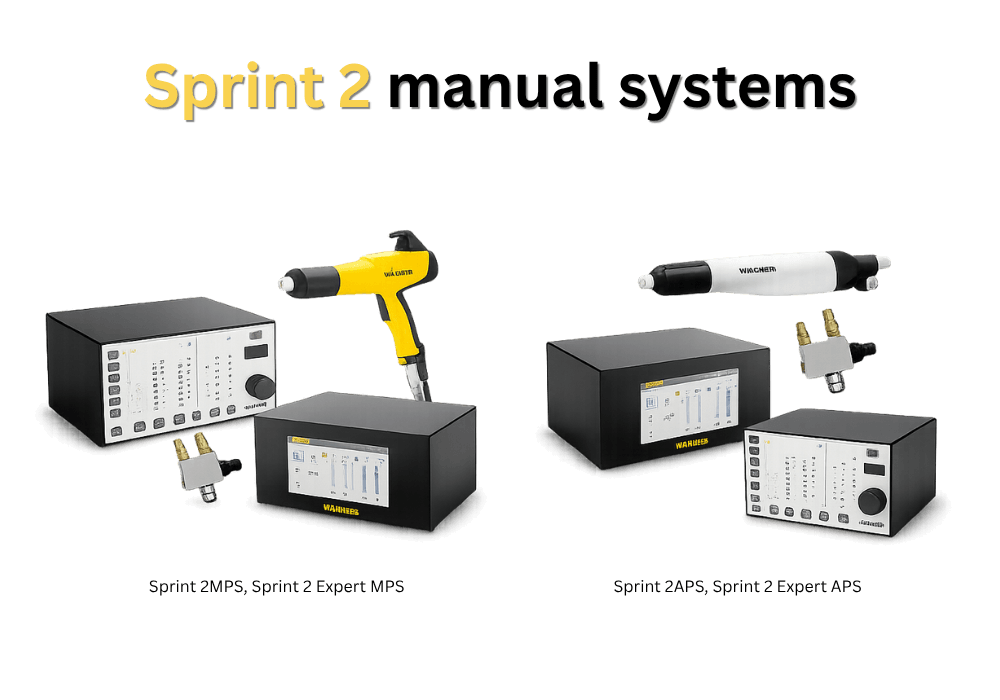

Sprint 2 — Reliable and Straightforward

The standard Sprint 2 control unit uses a dial-based interface with quick-access presets, giving experienced operators fast control over their go-to recipes without unnecessary complexity.

Sprint 2 Expert — Guided and Data-Driven

The Expert control unit steps things up with a touchscreen interface and a built-in setup wizard. Instead of guessing at settings, an operator answers a few simple questions about the part — its shape, size, and the type of powder being used — and the system recommends a ready-to-use recipe along with the right accessories and spray distance.

The Expert system also tracks powder usage automatically, logging who coated what, with which recipe, and how much material was used — useful for any shop that needs to monitor cost or quality over time.

Choosing the Right Powder Feed Setup

One of the most important decisions when configuring a Sprint 2 system is how the powder will be fed into the gun. Each method suits a different style of work:

• Box feed — powder is drawn directly from its original box, ideal for shops that frequently switch colors
• Container feed — a larger hopper for higher-volume, continuous production runs
• Table-mounted hopper — a compact 3-liter setup suited to fine, detailed work like small parts or lab testing
• Cup gun — a self-contained gun with its own small reservoir, perfect for one-off parts or rapid color testing
• Component sets — core parts for building a custom workstation or integrating into an automated line

Built-In Features That Improve Coating Quality

Closed-Loop Air Control

A continuously monitored airflow loop keeps powder delivery steady throughout the job, avoiding the inconsistent coverage that can come from manual or unregulated airflow.

Surface Finish Optimization

A single-button function reduces overcharge-related defects, which matters most on decorative finishes or when working with powders that are naturally harder to apply evenly.

Quick-Change Hose Coupling

Powder and air hoses detach in one motion, and a built-in scraper removes residual powder automatically — cutting the manual cleaning needed between colors or shifts.

Optional Automated Cleaning

For shops changing colors often, an add-on cleaning kit can purge the hose and gun internally using compressed air, with color changes completed in well under a minute.

Common Applications

Because the Sprint 2 range is modular, it covers an unusually wide span of use cases — from delicate decorative work to heavy-duty corrosion protection:

• Automotive parts and components
• Metal furniture and fixtures
• Architectural and structural metalwork
• Wheel and rim refinishing
• Laboratory and quality-testing environments
• Small-batch or prototype coating runs
