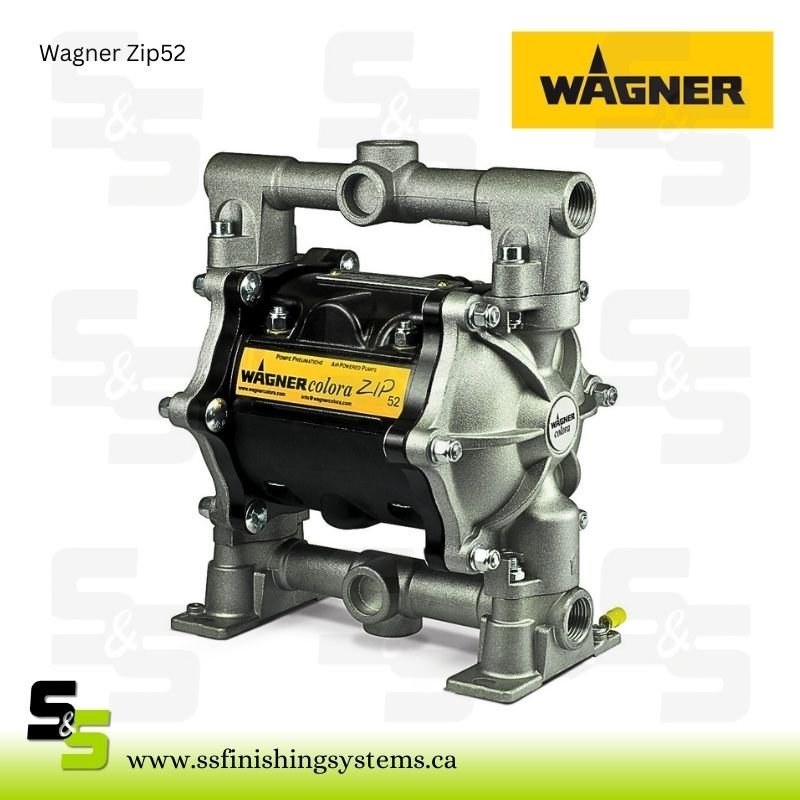

Wagner Zip 52
$0.00
Lightweight unit for use with air-atomising paint guns
Lightweight unit for use with air-atomising paint guns
Overview
- Economical: Compact, lightweight design avoids extensive cleaning requirements and cuts down on solvent use
- Extremely low-pulsation operation: Making the unit perfect for lower-pressure applications
- Reliable double diaphragm pump technology for high delivery volumes
- Suitable for use in potentially explosive atmospheres
- Zip 52 is available with aluminium (2301832), stainless steel (2301836) or acetal (2301837) housing.
Technical data
| Article number | 2301832 |
|---|---|
| MATERIALS HANDLED | Enamels, primers, varnishes, wood impregnations, oils, greases |
| PRICE CATEGORY (CAT. 1-5) | Category 1 |
| MAX. DELIVERY RATE | 52 l/min |
| OPERATING PRESSURE | 8 MPa |
| WEIGHT | 3.8 kg |
| POSSIBLE SUCTION SYSTEMS (ACCESSORIES MAY BE REQUIRED) | Flexible suction system |
| TECHNOLOGY | Double diaphragm pump |
| DRIVE | Pneumatic |
| EXPLOSION PROTECTION | Yes |
| AIR INLET PRESSURE | 0.1-0.8 MPa |
| MAX. MATERIAL PRESSURE | 0.8 MPa |
| MAX. INTAKE HEIGHT | 4.9 m |
| MAX. SOLID PARTICLE SIZE | 2 mm |
| SOUND PRESSURE LEVEL (50 cycles/min) | 76 dB(A) |
| OPERATING TEMPERATURE | 4-90° |
| COMPRESSED AIR CONNECTOR | 1/4″ |
| MATERIAL CONNECTIONS | 1/2″ |
| PUMP RATION | 1:1 |
Download
| SKU Variant | aluminium, stainless steel, acetal |
|---|
Be the first to review “Wagner Zip 52”
Related products
-

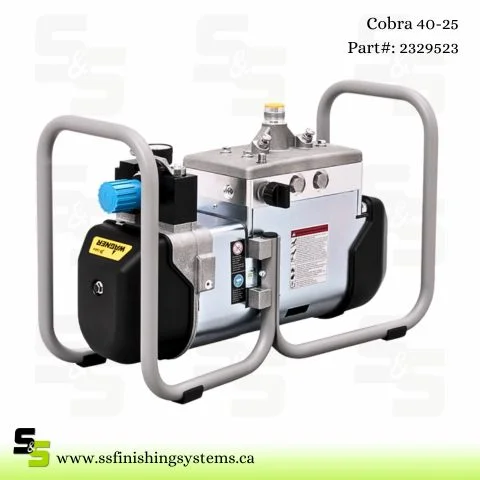

Cobra 40-25
Select options This product has multiple variants. The options may be chosen on the product page -

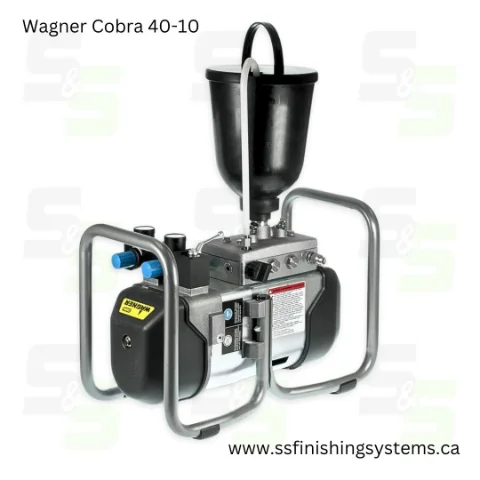

Cobra 40-10
