Elite 3500

0

Overview

The Titan Elite® 3500 is a gas-powered, sealed hydraulic paint sprayer that offers a lifetime of durability. The Elite 3500 uses the revolutionary PermaStroke Technology™ that has no piston, packings or clutch to replace, and is backed by the Elite™ lifetime fluid pump warranty. The Elite 3500 is a versatile direct drive sprayer that delivers a consistent finish and is easy to operate and is field serviceable, keeping contractors on the job.

Feature

• Sprays stains, lacquers, enamels, latex and block fillers
• PermaStroke Technology Delivers top performance at pressures from 300 to 3300 psi and when using small or large tip sizes
• No piston or packings, cylinder or clutch to wear or burn out
• FlatLine Pulsation Dampener™ eliminates all pressure fluctuations and dead band in the system providing smooth operation and a consistent finish
• Sureflo™ pusher valve that makes priming easy
• Elite lifetime warranty on fluid pump
• Perfect for spraying coatings prone to shearing
• Powered by Honda®
• Exceptionally quiet running engine
• Smooth performance with lower vibration
• Low oil alert system prevents engine seizure

Specifications

• Max. Delivery 0.75 GPM | 2.8 LPM
• Max operating pressure 3300 psi | 22.8 MPa
• Max Tip Size – 1 Gun – Gas 0.027″
• Engine Honda GX120
• Recommended Gallons Per Week 150-200
• Items Included RX-Pro Gun, 517 Tip, 1/4″ x 50′ Airless Hose

Configurations

Name                                          Part Number                Weight

Elite 3500 High Rider       0537012A                    103 lbs.

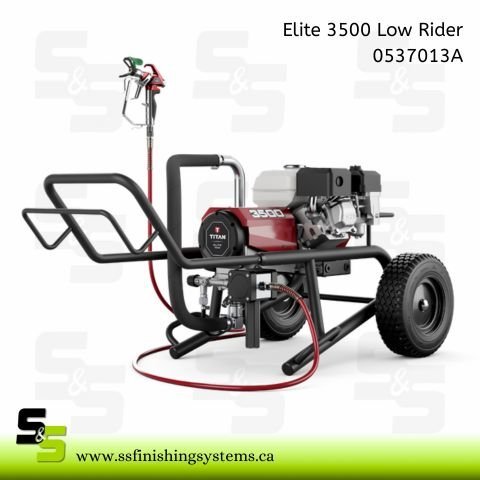

Elite 3500 Low Rider        0537013A                    95 lbs.
