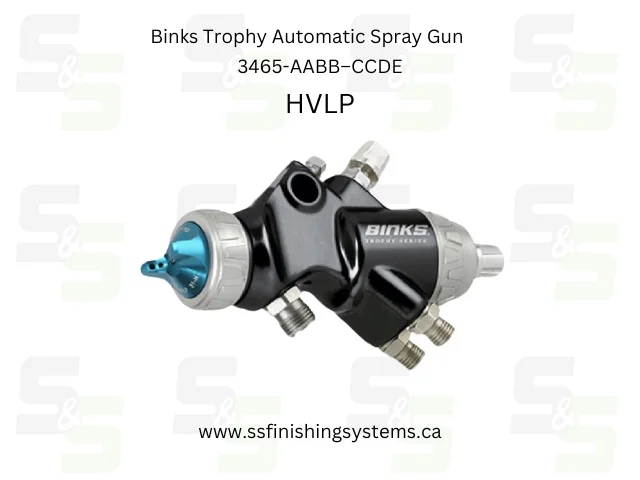

Binks Trophy Series Automatic Spray Gun-3465 HVLP

The Binks Trophy Series Automatic Gun is the premier gun for use in automatic applications

Overview

The Binks Trophy Series 3465 Automatic Spray Gun is a compact, high-performance solution for robotic arms, automatic machines, or fixed mounting positions. Designed for precision and efficiency, the 3465 model combines fast cycling, low overspray, and exceptional atomization in a rugged, serviceable body.

It features stainless steel fluid passages, making it ideal for waterborne and solvent-based coatings in demanding industrial settings, from general manufacturing to automotive parts finishing.

Key Feature

✔️ High-Speed Operation: Fast cycle rate ideal for automation and production lines

✔️ Stainless Steel Fluid Path: Compatible with a broad range of coatings

✔️ Excellent Atomization: Produces a smooth, professional-grade finish

✔️ Compact & Lightweight: Fits tight spaces, reduces arm wear in robotic use

✔️ Easy Maintenance: Simple design with readily available service kits

✔️ Low Air Consumption: Efficient use of compressed air

✔️ Multiple Nozzle/Needle Options: Tailored to your material and spray type

Technical Specifications

Spec	Detail
Max Fluid Pressure	100 PSI (6.8 bar)
Max Air Pressure	100 PSI (6.8 bar)
Fluid Inlet	1/4″ NPS (M)
Atomizing Air Inlet	1/4″ NPS (M)
Gun Body Material	Anodized Aluminum
Fluid Passages	Stainless Steel
Mounting	Manifold or threaded mounting holes
Weight	Approx. 540 g (1.2 lbs)
Recommended Applications	Automated, fixed-position, robotic arms

Download

Trophy Automatic Service Manual 77-3049 – English

 Trophy Automatic Guns 03-356-01
