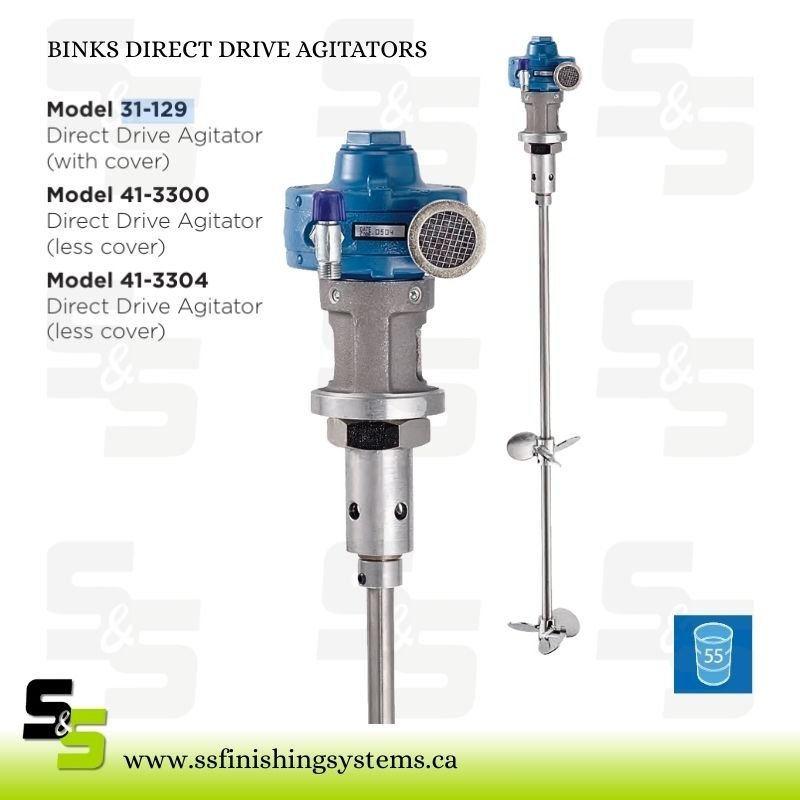

BINKS DIRECT DRIVE AGITATORS
Price range: $2,105.60 through $3,057.60
Direct Drive Agitators for Light Body Materials in Open-top 55 Gallon Drums
Direct Drive Agitators for Light Body Materials in Open-top 55 Gallon Drums
Overview
Binks offers a series of Direct Drive Agitators designed for 55-gallon drums, optimized for light-body materials like stains and lacquers. These units use air-driven motors for efficient mixing without external gears.
Key Feature
-
Application: Open-top 55-gallon drums, suitable for light-body materials.
-
Motor: Air-driven motor
-
Speed: Up to 3,000 RPM shaft speed for direct-drive models.
-
Air Supply: Minimum 60 psi gauge pressure, with air filter/moisture trap recommended.
-
Propeller Shaft: 1/2" stainless steel
-
Propellers: 2 blades, diameter 4-1/2" (114.3 mm)
-
Lubrication: Use SAE 10W non-detergent oil to maintain motor health.
Model Configurations
| Model | Description | Cover Included | Propeller Material |
|---|---|---|---|
| 31-129 | SS Agitator Assembly with Cover | Yes | Stainless Steel |
| 41-3300 | Direct Agitator | No | Aluminum |
| 41-3304 | SS Direct Agitator 55 Gal | No | Stainless Steel |
| 41-3305 | Gear Drive Agitator L/Air | No |
| Model Variant | 31-129 SS Agitator Assembly with Cover, 41-3300 Direct Agitator, 41-3304 SS Direct Agitator 55 Gal, 41-3305 Gear Drive Agitator L/Air |
|---|
