Binks 2-Gal Stainless Steel Pressure Tank
Price range: $3,840.20 through $5,254.20
Binks 2-Gal Stainless Steel Pressure Tank Range of High Quality Pressure Feed Tanks and Paint Supply Containers.
BINKS 183S- ASME CODE STAINLESS STEEL TANKS
Overview
The Binks 2-Gallon Stainless Steel Pressure Tank is a high-quality container designed for the preparation, conditioning, and supply of coating materials in various industrial applications. Constructed from stainless steel, this tank is ideal for both solvent-based and waterborne coatings, offering durability and resistance to corrosion.
Key Feature
- Capacity: 2 gallons, suitable for small to medium-sized projects.Construction: Made from heavy-gauge stainless steel with forged steel clamps, ensuring durability and compatibility with various coatings.
- Certifications: Fully approved and CE marked to the latest pressure equipment directive 97/23/EC, complying with European and global pressure regulations, including PED, ATEX, and ASME.
- Regulation: Equipped with easy-to-operate air regulators to set the desired fluid outlet pressure, ensuring consistent application.
- Safety: Features safety pressure relief valves to maintain safe operating conditions.
- Agitation Options: Available in non-agitated models or with manual, rotary, or oscillating agitation types to provide the best quality agitation for your specific application.
- Inner Liners: Optional inner liners reduce cleaning time and save coating material, enhancing efficiency.
- Specifications:The Binks 183S series comprises a range of 2-gallon stainless steel pressure tanks, each designed to meet specific application requirements.

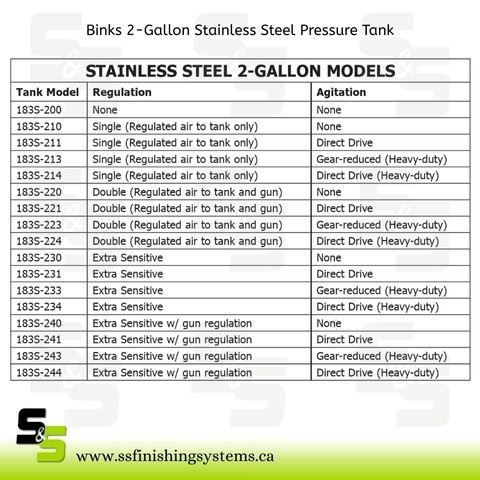

Model Configurations
| Model | Description |
|---|---|
| 183S-210-CE | 2 Gallon Pressure Tank, Stainless Steel, CE/ATEX |
| 183S-211-CE | 2 Gallon Pressure Tank, SS CE/ATEX, Direct Drive Agitation |
| 183S-213 | 2 Gallon Pressure Tank Gear Reduced Agitated SS, 1 Regulator |
| 183S-213-CE | 2 Gallon Pressure Tank SS CE/ATEX, Indirect Drive Agitation |
| 183S-223 | 2 Gallon Pressure Tank, Gear Reduced, Agitated Stainless Steel, 2 Regulators |
| 183S-233 | 2 Gallon Pressure Tank Gear Reduced Agitated SS, 1 Regulator |
| 183S-243 | 2 Gallon Pressure Tank Gear Reduced Agitated SS, 2 Regulators |
Download
2-Gallon ASME Tank Manual 77-3132
Technical Specifications
| SPECIFICATIONS | STAINLESS STEEL TANKS |
| Maximum Working Pressure | 110 psi |
| Tank Shell | 304 Stainless Steel |
| Tank Lid | 304 Stainless Steel |
| Fluid Tube | 3/8 in. SS Pipe, 316 Stainless Steel |
| Fluid Outlet (Elbow) | 316 Stainless Steel |
| Fluid Valve, Outlet | 316 Stainless Steel 3/8-18 NPS(M) |
| Agitator Paddle/Propeller | Nylon, Glass Filled |
| Agitator Shaft | 303 Stainless Steel |
| Agitator Shaft Seal | Engineered PTFE, Stainless Steel |
| Air Manifold | Steel, Zinc Plate |
| Plug (Air Manifold Coupling) | 18-8 Stainless Steel |
| Bottom Outlet (Optional Kit) | 304 Stainless Steel 3/4-14 NPS(M) |
| Agitation Type | Standard, Direct Drive Agitator, Gear-Reduced Agitator |
|---|---|
| Regulator Type | No Regulator, 1 Regulator, 2 Regulators |
| Special Option | CE/ATEX Certified, Standard |
| Configuration Detail | 183S-210-CE – 2 Gallon Pressure Tank, Stainless Steel, CE/ATEX, 183S-211-CE – 2 Gallon Pressure Tank, SS CE/ATEX, Direct Drive Agitation, 183S-213 – 2 Gallon Pressure Tank Gear Reduced Agitated SS, 1 Regulator, 183S-213-CE – 2 Gallon Pressure Tank SS CE/ATEX, Indirect Drive Agitation, 183S-223 – 2 Gallon Pressure Tank, Gear Reduced, Agitated Stainless Steel, 2 Regulators, 183S-233 – 2 Gallon Pressure Tank Gear Reduced Agitated SS, 1 Regulator, 183S-243 – 2 Gallon Pressure Tank Gear Reduced Agitated SS, 2 Regulators |
